Preprocessing Pipeline¶
The preprocessing of fMRI scans prior to analysis consists of, at minimum, the anatomical alignment of scans to a common space, head realignment to correct for motion, and the correction of susceptibility distortions arising from the echo-planar imaging (EPI) acquisition of functional scans. The core preprocessing pipeline in RABIES carries each of these steps with state-of-the-art processing tools and techniques.
To conduct common space alignment, structural images, which were acquired along the EPI scans, are initially corrected for inhomogeneities and then registered together to allow the alignment of different MRI acquisitions. This registration is conducted by generating an unbiased data-driven template through the iterative non-linear registration of each image to the dataset consensus average, where the average gets updated at each iteration to provide an increasingly representative dataset template (https://github.com/CoBrALab/optimized_antsMultivariateTemplateConstruction; [ATS+11]). The finalized template after the last iteration will provide a representative alignment of each MRI session to a template that shares the acquisition properties of the dataset (e.g. brain shape, FOV, anatomical contrast, …), which makes it a stable registration target for cross-subject alignment. After aligning the MRI sessions, this newly-generated unbiased template is then itself registered to an external reference atlas to provide both an anatomical segmentation and a common space comparable across studies defined from the provided reference atlas.
The remaining preprocessing involves the EPI image. A volumetric EPI image is first derived using a trimmed mean across the EPI frames, after an initial motion realignment step (see 3D EPI generation). Using this volumetric EPI as a target, the head motion parameters are estimated by realigning each EPI frame to the target using a rigid registration. To correct for EPI susceptibility distortions, the volumetric EPI is first subjected to an inhomogeneity correction step, and then registered non-linearly to the anatomical scan from the same MRI session, which allows to calculate the required geometrical transforms for recovering brain anatomy [WPG+17]. Finally, after calculating the transformations required to correct for head motion and susceptibility distortions, both transforms are concatenated into a single resampling operation (avoiding multiple resampling) which is applied at each EPI frame, generating the preprocessed EPI timeseries in native space [EMB+19]. Preprocessed timeseries in common space are also generated by further concatenating the transforms allowing resampling to the reference atlas.

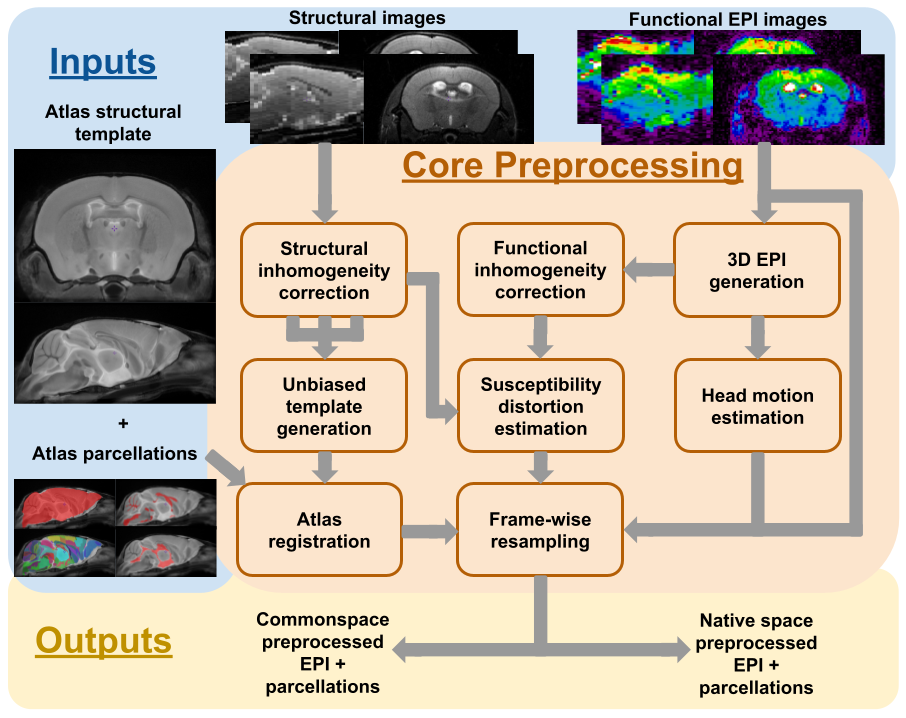

The workflow of the RABIES preprocessing pipeline is summarized in the diagram above, and each preprocessing module is further described below.
Structural inhomogeneity correction¶
Figure: displays steps of inhomogeneity correction for the structural image.
[workflow source code]; Ref.: [ManjonCoupeMartiBonmati+10, SZE98]
"""
Corrects an input 3D image for intensity inhomogeneities. The image is denoised with non-local mean
denoising (Manjón et al., 2010) followed by iterative correction for intensity inhomogeneities (Sled
et al., 1998). Initial masking is achieved via intensity thresholding, giving an initial correction of
the image, and a registration is then conducted to register a brain mask for a final round of correction.
References:
Manjón, J. V., Coupé, P., Martí-Bonmatí, L., Collins, D. L., & Robles, M. (2010). Adaptive non-local means
denoising of MR images with spatially varying noise levels. Journal of Magnetic Resonance Imaging:
JMRI, 31(1), 192–203.
Sled, J. G., Zijdenbos, A. P., & Evans, A. C. (1998). A nonparametric method for automatic correction of
intensity nonuniformity in MRI data. IEEE Transactions on Medical Imaging, 17(1), 87–97.
Command line interface parameters:
--anat_inho_cor_method {Rigid,Affine,SyN,no_reg,N4_reg,disable}
Select a registration type for masking during inhomogeneity correction of the structural
image.
*** N4_reg: previous correction script prior to version 0.3.1.
*** disable: disables the inhomogeneity correction.
(default: SyN)
--bold_inho_cor_method {Rigid,Affine,SyN,no_reg,N4_reg,disable}
Select a registration type for masking during inhomogeneity correction of the EPI.
*** N4_reg: previous correction script prior to version 0.3.1.
*** disable: disables the inhomogeneity correction.
(default: Rigid)
--bold_inho_cor_otsu BOLD_INHO_COR_OTSU
The inhomogeneity correction script necessitates an initial correction with a Otsu
masking strategy (prior to registration of an anatomical mask). This option sets the
Otsu threshold level to capture the right intensity distribution.
(default: 2)
Workflow:
parameters
opts: command line interface parameters
image_type: between 'EPI' and 'structural'. Defines which script to run depending on
image type
inputs
target_img: the image to correct
anat_ref: the registration target with a brain mask
anat_mask: the brain mask of the registration target
name_source: reference file for naming purpose
outputs
corrected: the output image after the final correction
denoise_mask: the brain mask resampled on the corrected image
init_denoise: the image after a first round of correction
"""
Common space alignment (i.e. Unbiased template generation + Atlas registration)¶
Figure: displays the overlap between a structural scan (top) and the dataset-generated unbiased template (bottom).
Figure: displays the overlap between the unbiased template (top) and the reference atlas template (bottom).
[workflow source code]; Ref.: [ATS+11]
"""
This workflow handles the alignment of all MRI sessions to a common space. This is conducted first by generating
a dataset-specific unbiased template from the input structural images, thereby aligning the different MRI
sessions. Through a set of iterations, images are registered to a consensus average generated from the overlap
of all scans at the previous iteration. Registrations are increasingly stringent, executing 2 iterations each
for a rigid, then affine and finally non-linear template generation. The final iteration provides the individual
transforms to align each scan to the unbiased template. This template generation process creates a robust target
for the alignment of MRI sessions sharing the same acquisition properties, which will minimize registration
inconsistencies between sessions, as opposed to the direct registration to an external template. The algorithm is
implemented in https://github.com/CoBrALab/optimized_antsMultivariateTemplateConstruction.
After generating the unbiased template, the template itself is registered with a non-linear registration to the
reference atlas in common space, providing transforms to common space and the associated brain parcellations.
References:
Avants, B. B., Tustison, N. J., Song, G., Cook, P. A., Klein, A., & Gee, J. C. (2011). A reproducible evaluation
of ANTs similarity metric performance in brain image registration. NeuroImage, 54(3), 2033–2044.
Command line interface parameters:
Registration Options:
Customize registration operations and troubleshoot registration failures.
*** Rigid: conducts only rigid registration.
*** Affine: conducts Rigid then Affine registration.
*** SyN: conducts Rigid, Affine then non-linear registration.
*** no_reg: skip registration.
--atlas_reg_script {Rigid,Affine,SyN,no_reg}
Specify a registration script for alignment of the dataset-generated unbiased template
to the commonspace atlas.
(default: SyN)
--commonspace_masking
Combine masks derived from the inhomogeneity correction step to support registration
during the generation of the unbiased template, and then during atlas registration.
(default: False)
--brain_extraction If using --commonspace_masking and/or --coreg_masking, this option will conduct brain
extractions prior to registration based on the initial mask during inhomogeneity
correction. This will enhance brain edge-matching, but requires good quality masks.
(default: False)
--fast_commonspace Skip the generation of a dataset-generated unbiased template, and instead, register each
anatomical scan independently directly onto the commonspace atlas, using the
--atlas_reg_script registration. This option can be faster, but may decrease the quality
of alignment between subjects.(default: False)
Workflow:
parameters
opts: command line interface parameters
output_folder: specify a folder to execute the workflow and store important outputs
transforms_datasink: datasink node where the transforms are stored
num_procs: set the maximum number of parallel threads to launch
inputs
moving_image_list: list of files corresponding to the images from different MRI sessions
moving_mask_list: mask files overlapping with the moving images, inherited from the inhomogeneity
correction step. These masks are used for --commonspace_masking and --brain_extraction
atlas_anat: the structural template in common space
atlas_mask: the brain mask in common space
inputnode_iterable: this input node expects inputs from a upstream node which iterates over each MRI session,
which allows to associate back the outputs from unbiased template generation to each MRI session
iter_name: the file name from moving_image_list associated to a given MRI session
outputs
unbiased_template: the generated unbiased template
native_mask: the atlas brain mask resampled to an associated MRI session in native space
to_atlas_affine: affine transform for registration to the atlas
to_atlas_warp: non-linear transform for registration to the atlas
to_atlas_inverse_warp: inverse of the non-linear transform for registration to the atlas
native_to_unbiased_affine: affine transform from native space to the unbiased template
native_to_unbiased_warp: non-linear transform from native space to the unbiased template
native_to_unbiased_inverse_warp: inverse of the non-linear transform from native space to the unbiased template
native_to_commonspace_transform_list: ordered list of the transforms to apply to move from the
native space to the common space
native_to_commonspace_inverse_list: list defining whether the inverse of affine transforms should
be applied for native_to_commonspace_transform_list
commonspace_to_native_transform_list: ordered list of the transforms to apply to move from the
common space to the natiev space
commonspace_to_native_inverse_list: list defining whether the inverse of affine transforms should
be applied for commonspace_to_native_transform_list
"""
3D EPI generation¶
[workflow source code]; Ref.: [ManjonCoupeMartiBonmati+10]
"""
The 4D raw EPI file is used to generate a representative volumetric 3D EPI. This volume later becomes the target for
motion realignment and the estimation of susceptibility distortions through registration to the structural image.
Two iterations of motion realignment to an initial median of the volumes are conducted, then a trimmed mean is
computed on the realignment volumes, ignoring 5% extreme, and this average becomes the reference image. The final
image is then corrected using non-local means denoising (Manjón et al., 2010).
References:
Manjón, J. V., Coupé, P., Martí-Bonmatí, L., Collins, D. L., & Robles, M. (2010). Adaptive non-local means
denoising of MR images with spatially varying noise levels. Journal of Magnetic Resonance Imaging:
JMRI, 31(1), 192–203.
Command line interface parameters:
--detect_dummy Detect and remove initial dummy volumes from the EPI, and generate a reference EPI based on
these volumes if detected. Dummy volumes will be removed from the output preprocessed EPI.
(default: False)
Workflow:
parameters
opts: command line interface parameters
inputs
bold_file: Nifti file with EPI timeseries
outputs
ref_image: the reference EPI volume
bold_file: the input EPI timeseries, but after removing dummy volumes if --detect_dummy is selected
"""
Head motion estimation¶

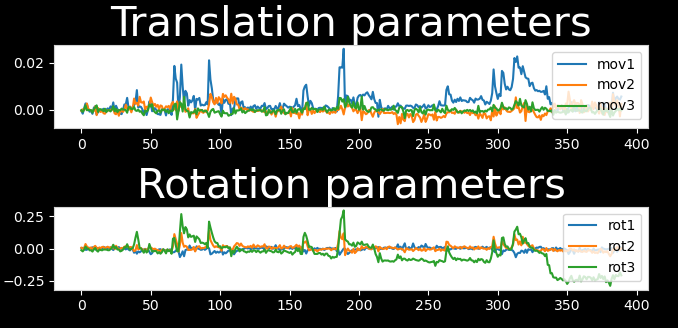

Figure: example of the 6 motion parameters.
[workflow source code]; Ref.: [ATS09]
"""
This workflow estimates motion during fMRI acquisition. To do so, each EPI frame is registered to a volumetric
target reference image with a rigid registration using ANTs' antsMotionCorr algorithm (Avants et al., 2009).
The resulting 3 translation and 3 rotation realignment parameters are saved for all frames into an output CSV file.
References:
Avants, B. B., Tustison, N., & Song, G. (2009). Advanced normalization tools (ANTS). The Insight Journal, 2, 1–35.
Command line interface parameters:
--HMC_option {intraSubjectBOLD,0,1,2,3}
Select an option for head motion realignment among the pre-built options from
https://github.com/ANTsX/ANTsR/blob/master/R/ants_motion_estimation.R.
(default: intraSubjectBOLD)
--apply_slice_mc Whether to apply a slice-specific motion correction after initial volumetric HMC. This can
correct for interslice misalignment resulting from within-TR motion. With this option,
motion corrections and the subsequent resampling from registration are applied sequentially
since the 2D slice registrations cannot be concatenate with 3D transforms.
(default: False)
Workflow:
parameters
opts: command line interface parameters
inputs
bold_file: Nifti file with EPI timeseries to realign
ref_image: the 3D image target for realignment
outputs
motcorr_params: CSV file which contains all translation and rotation parameters
slice_corrected_bold: if using the experimental method --apply_slice_mc, these are the EPI frames
after both rigid and then slice-specific realignment
"""
Functional inhomogeneity correction¶
Figure: displays steps of inhomogeneity correction for the volumetric EPI.
The workflow is the same as the structural inhomogeneity correction.
Susceptibility distortion estimation¶
Figure: displays the overlap between the volumetric EPI (top) and structural image (bottom).
[workflow source code]; Ref.: [WPG+17]
"""
The input volumetric EPI image is registered non-linearly to an associated structural MRI image.
The non-linear transform estimates the correction for EPI susceptibility distortions (Wang et al., 2017).
References:
Wang, S., Peterson, D. J., Gatenby, J. C., Li, W., Grabowski, T. J., & Madhyastha, T. M. (2017).
Evaluation of Field Map and Nonlinear Registration Methods for Correction of Susceptibility Artifacts
in Diffusion MRI. Frontiers in Neuroinformatics, 11, 17.
Command line interface parameters:
Registration Options:
Customize registration operations and troubleshoot registration failures.
*** Rigid: conducts only rigid registration.
*** Affine: conducts Rigid then Affine registration.
*** SyN: conducts Rigid, Affine then non-linear registration.
*** no_reg: skip registration.
--coreg_script {Rigid,Affine,SyN,no_reg}
Specify the registration script for cross-modal alignment between the EPI and structural
images. This operation is responsible for correcting EPI susceptibility distortions.
(default: SyN)
--coreg_masking Use the mask from the EPI inhomogeneity correction step to support registration to the
structural image.
(default: False)
--brain_extraction If using --commonspace_masking and/or --coreg_masking, this option will conduct brain
extractions prior to registration based on the initial mask during inhomogeneity
correction. This will enhance brain edge-matching, but requires good quality masks.
(default: False)
Workflow:
parameters
opts: command line interface parameters
inputs
ref_bold_brain: volumetric EPI image to register
anat_ref: the target structural image
anat_mask: the brain mask of the structural image
moving_mask: a EPI mask inherited from inhomogeneity correction
outputs
bold_to_anat_affine: affine transform from the EPI to the anatomical image
bold_to_anat_warp: non-linear transform from the EPI to the anatomical image
bold_to_anat_inverse_warp: inverse non-linear transform from the EPI to the anatomical image
output_warped_bold: the EPI image warped onto the structural image
"""
Frame-wise resampling¶
"""
This workflow carries out the resampling of the original EPI timeseries into preprocessed timeseries.
This is accomplished by applying at each frame a combined transform which accounts for previously estimated
motion correction and susceptibility distortion correction, together with the alignment to common space if
the outputs are desired in common space. All transforms are concatenated into a single resampling operation
to mitigate interpolation effects from repeated resampling.
This workflow also carries the resampling of brain masks and labels from the reference atlas onto the
preprocessed EPI timeseries.
Command line interface parameters:
Resampling Options:
The following options allow to resample the voxel dimensions for the preprocessed EPIs
or for the anatomical images during registration.
The resampling syntax must be 'dim1xdim2xdim3' (in mm), follwing the RAS axis convention
(dim1=Right-Left, dim2=Anterior-Posterior, dim3=Superior-Inferior). If 'inputs_defined'
is provided instead of axis dimensions, the original dimensions are preserved.
--nativespace_resampling NATIVESPACE_RESAMPLING
Can specify a resampling dimension for the nativespace fMRI outputs.
(default: inputs_defined)
--commonspace_resampling COMMONSPACE_RESAMPLING
Can specify a resampling dimension for the commonspace fMRI outputs.
(default: inputs_defined)
Workflow:
parameters
opts: command line interface parameters
resampling_dim: specify the desired output voxel dimensions after resampling
inputs
name_source: a reference file for naming the output
bold_file: the EPI timeseries to resample
motcorr_params: the motion correction parameters
transforms_list: a list of transforms to apply onto EPI timeseries, including
susceptibility distortion correction and resampling to common space
inverses: a list specifying whether the inverse affine transforms should be
applied in transforms_list
ref_file: a reference image in the targetted space for resampling. Should be the structural
image from the same session if outputs are in native space, or the atlas template for
outputs in common space
mask_transforms_list: the list of transforms to apply onto the atlas parcellations
to overlap with the EPI
mask_inverses: a list specifying whether the inverse affine transforms should be
applied in mask_transforms_list
outputs
bold: the preprocessed EPI timeseries
bold_ref: a volumetric 3D EPI generated from the preprocessed timeseries
brain_mask: the brain mask resampled onto preprocessed EPI timeseries
WM_mask: the WM mask resampled onto preprocessed EPI timeseries
CSF_mask: the CSF mask resampled onto preprocessed EPI timeseries
vascular_mask: the vascular mask resampled onto preprocessed EPI timeseries
labels: the atlas labels resampled onto preprocessed EPI timeseries
"""
Adapted workflow without structural scans (i.e. –bold_only)¶
Structural scans are recommended, but not required to complete preprocessing with RABIES. An alternative workflow is also implemented to preprocess a input dataset which contains only EPI functional images, and can be selected with the --bold_only option. In this alternative workflow, the volumetric EPI corrected for inhomogeneity during Functional inhomogeneity correction replaces the structural image for the purpose of common space alignment, and is thus used for generating the unbiased template, in turn, this template is registered to the reference atlas. This final registration to the atlas accounts for estimation of susceptibility distortions instead of the registration to a structural image from the same MRI session. Given that this atlas registration must be applied to account for susceptibility distortions, only preprocessed timeseries in common space are provided when running this workflow.
If using the RABIES default mouse atlas, the default template is changed to a EPI reference template, which offers a more robust target for EPI registration than a structural image as reference template.
